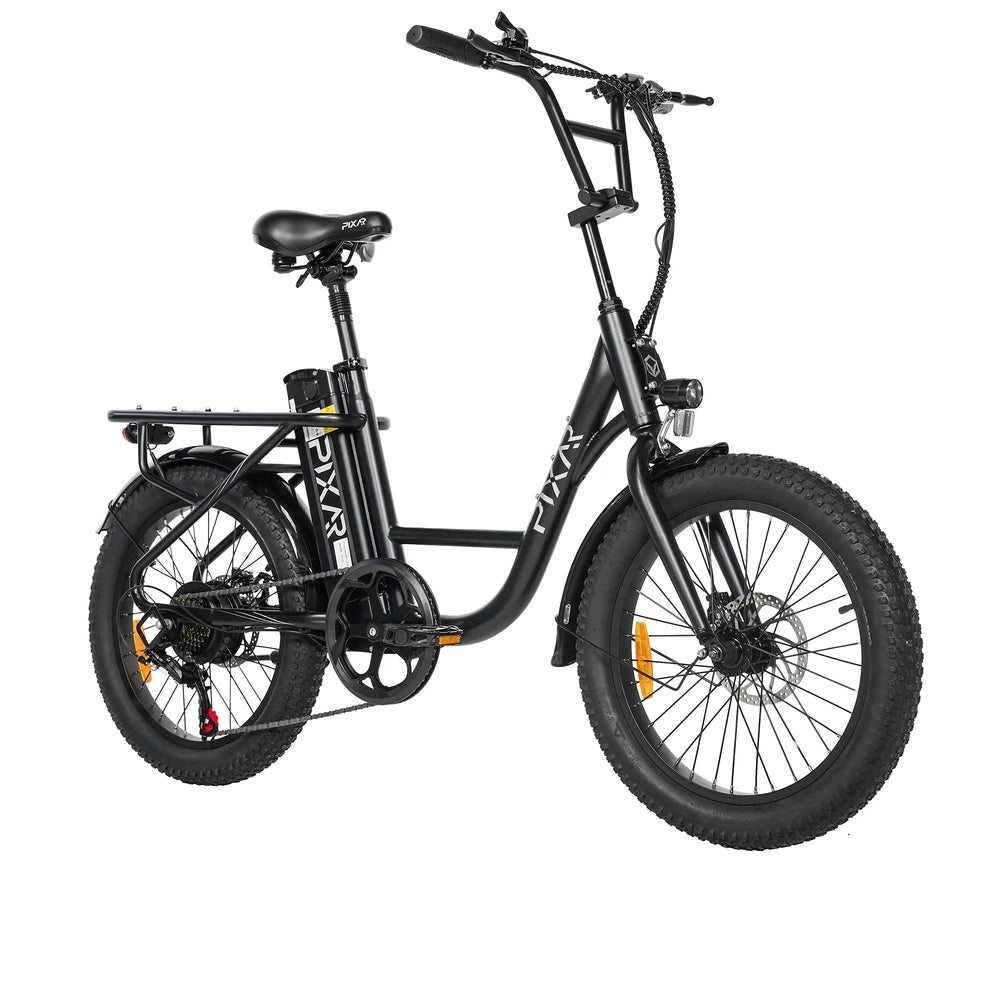

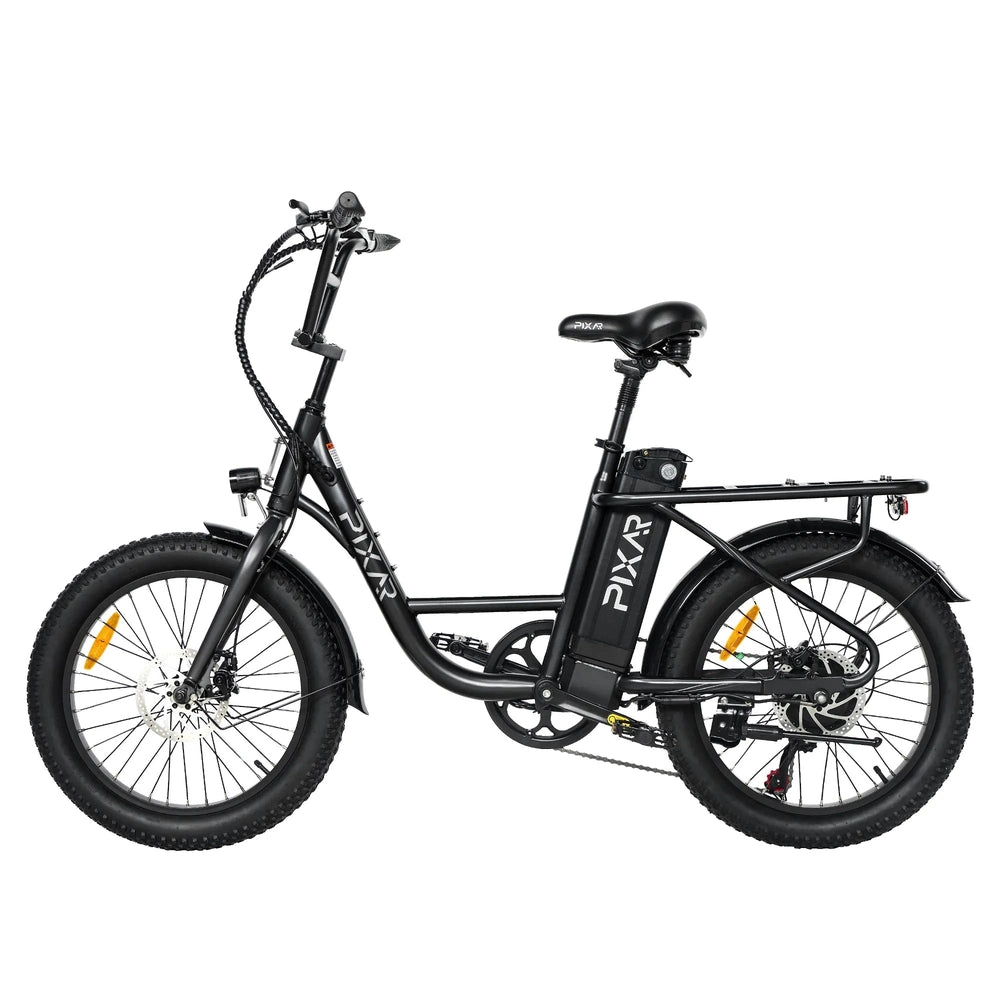

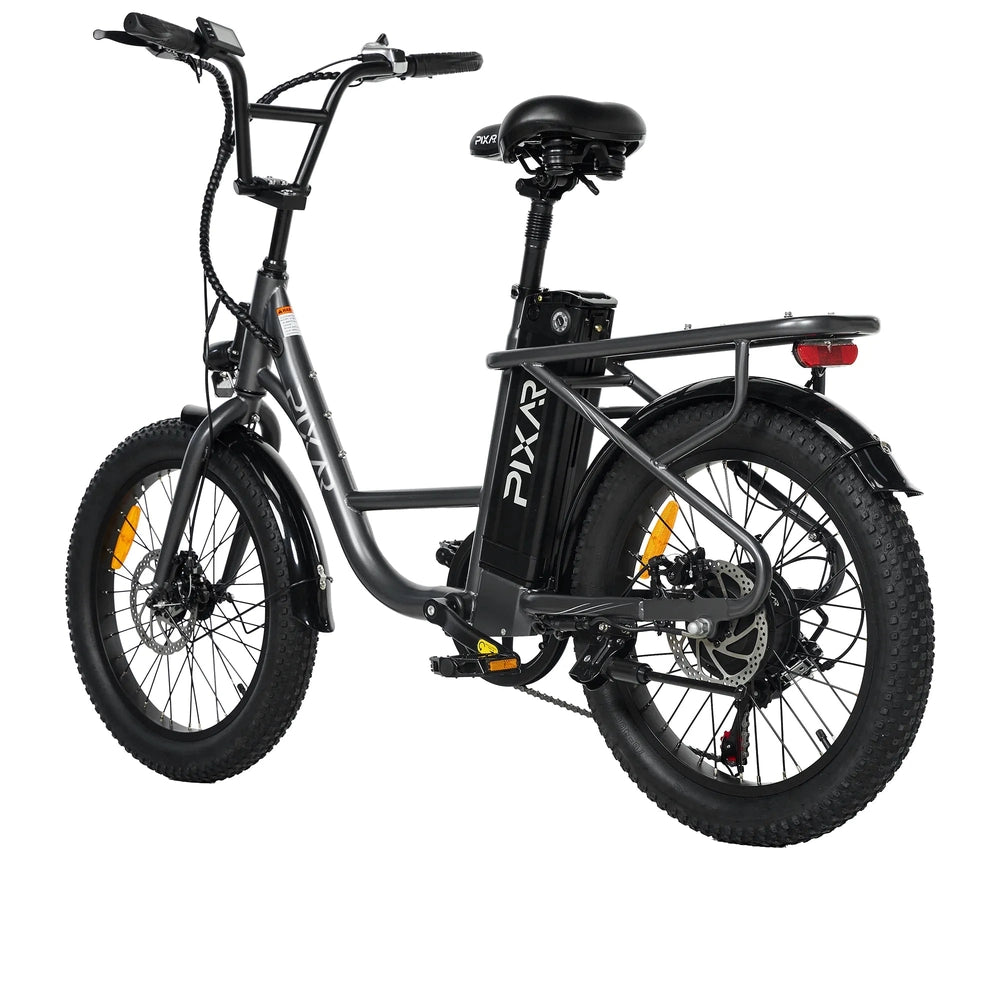

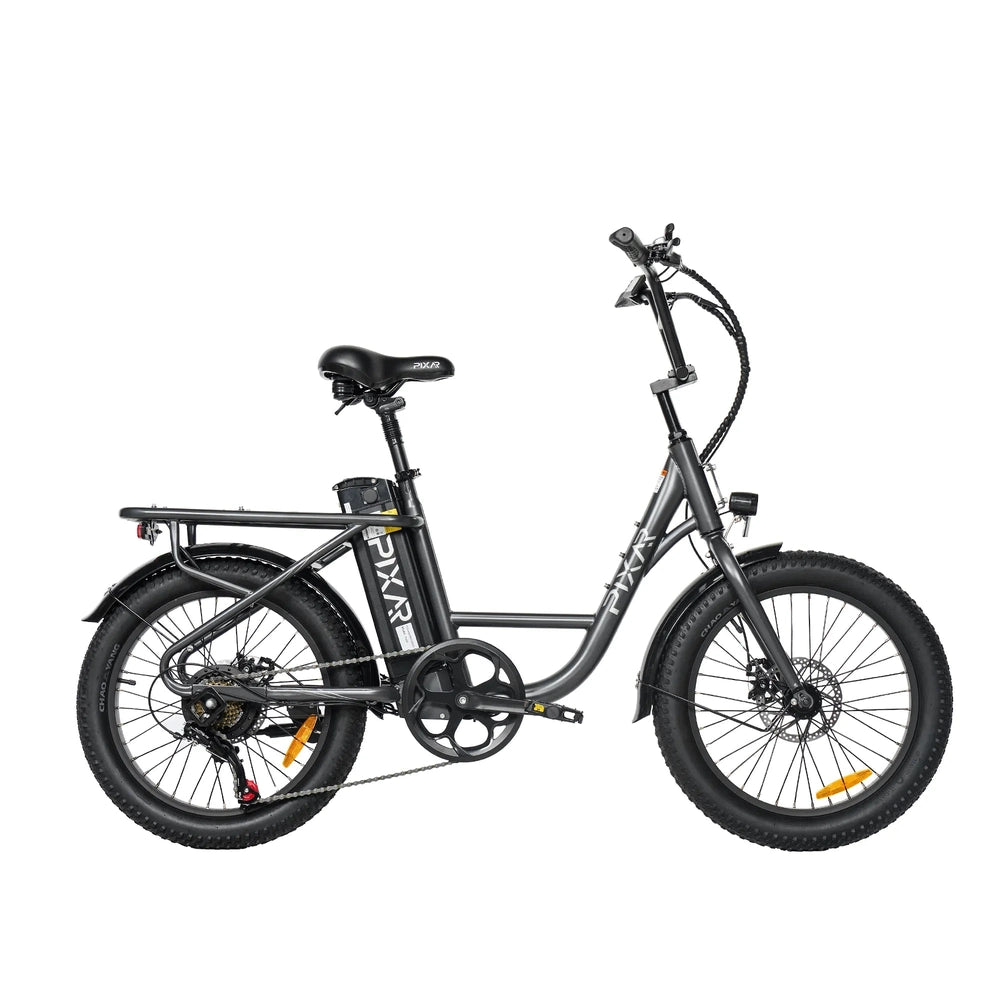

PIXAR® Fun1 Electric Bike

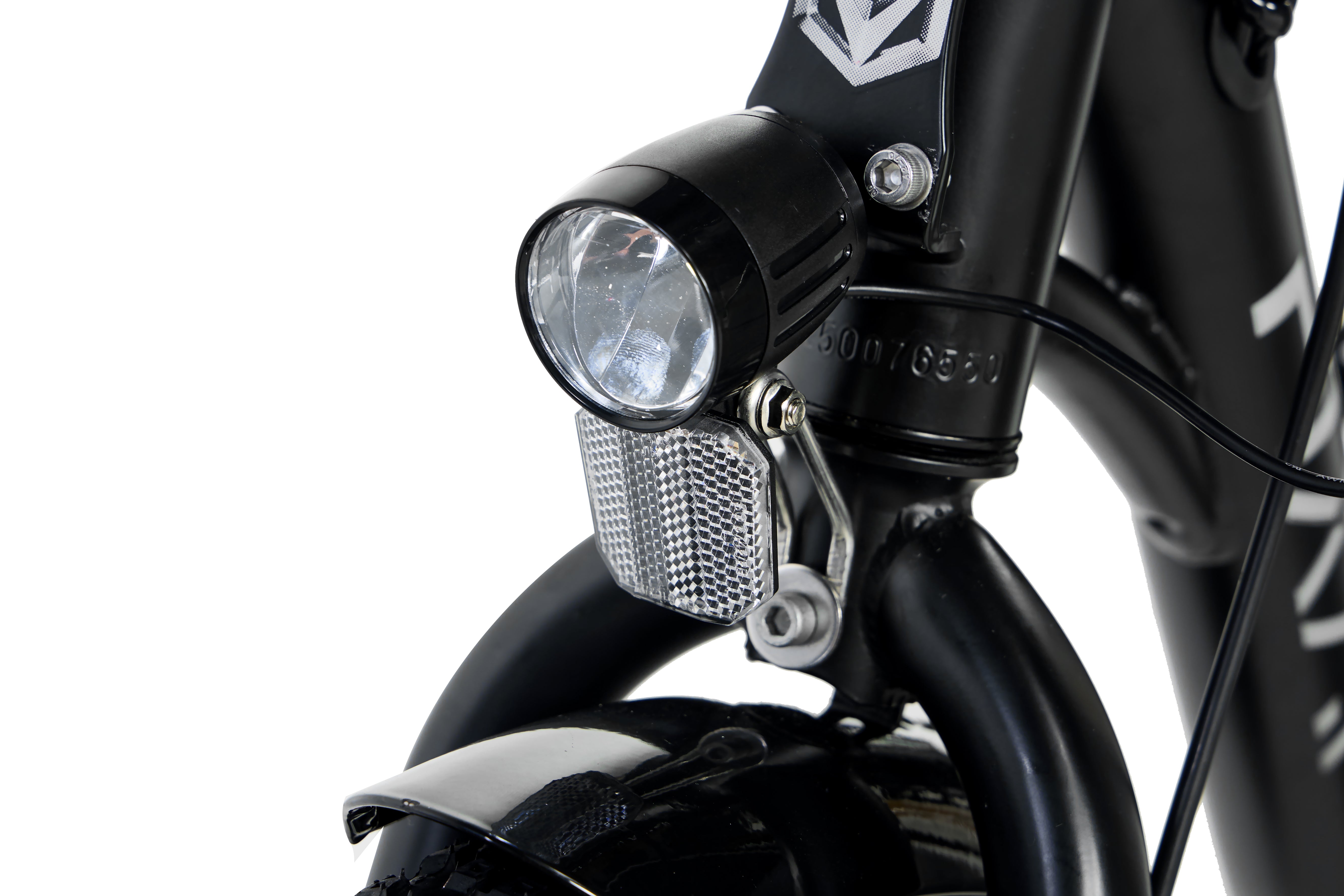

Headlights
The headlight has a modern design and a powerful 30-lux light beam. And with the XTL technology, it is glare-free for safe riding.
Hydraulic disc brakes
Hydraulic disc brakes offer powerful and safe braking performance in contrast to mechanical brakes. Whether on steep descents or abrupt stops - stay in control and overcome obstacles with confidence.

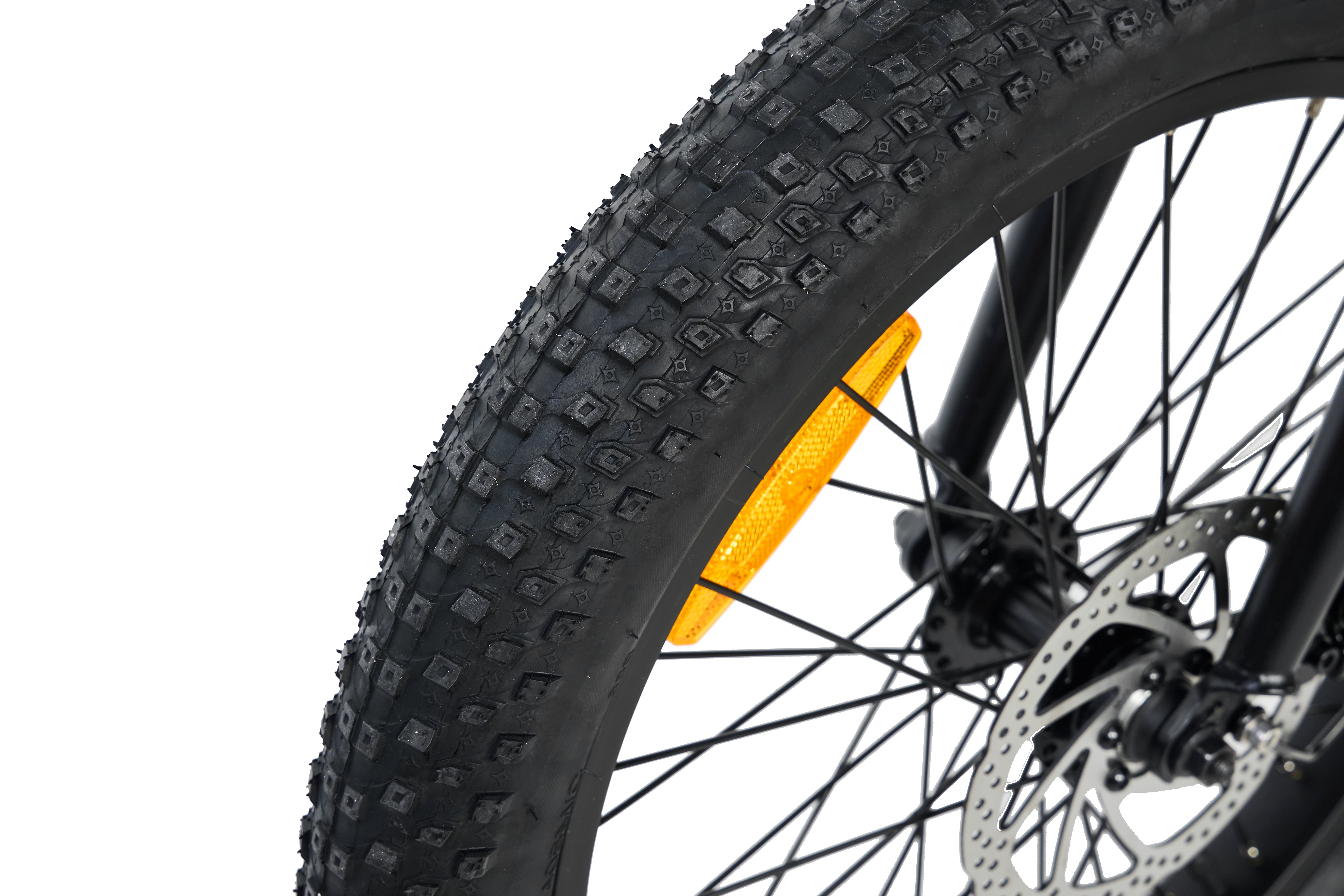

Puncture-proof tyres
The 26"*3.0"C tyres with anti-puncture technology are versatile for city, gravel and long distances. With puncture resistance and tread patterns, the tyres ensure your safety on the roads.

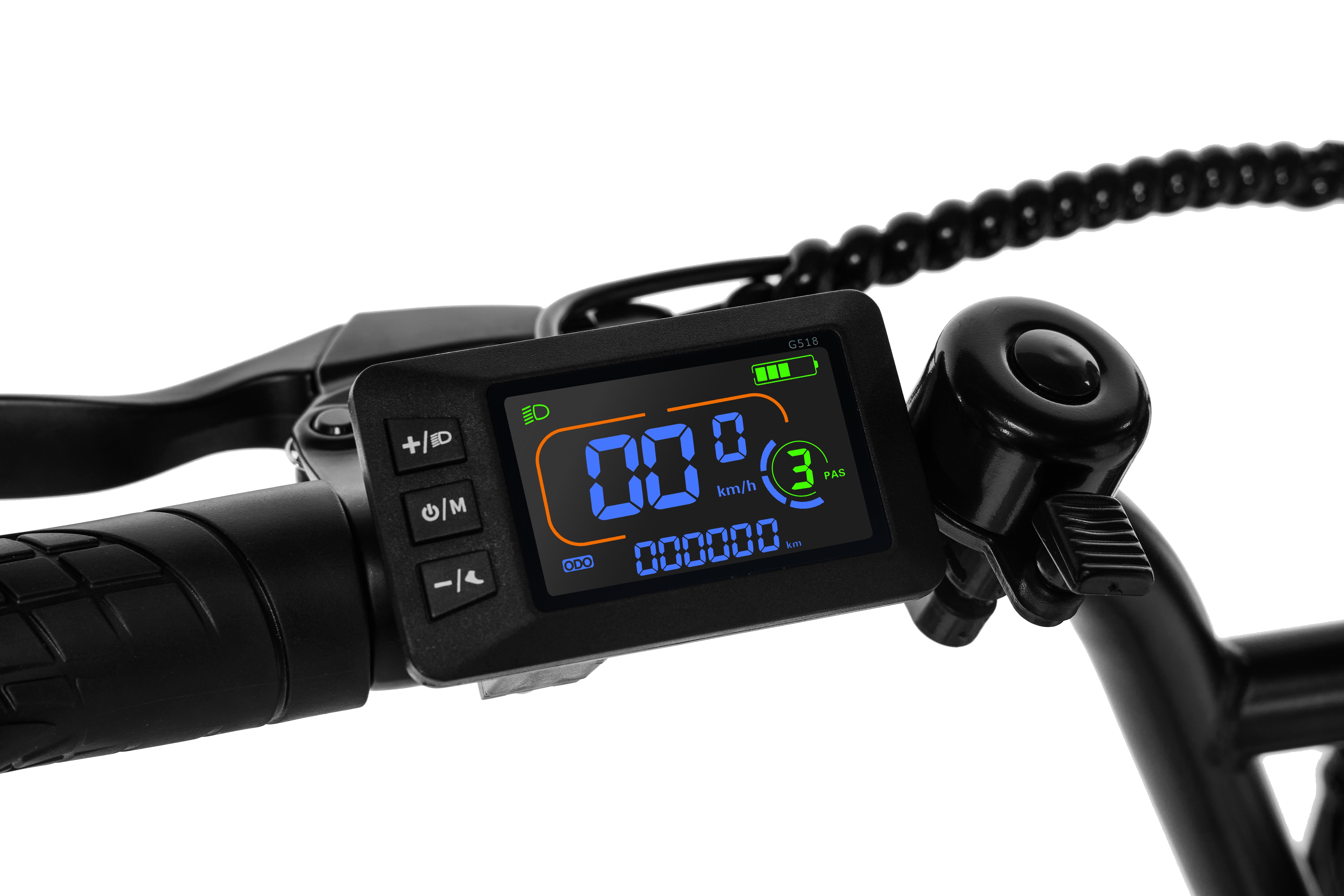

LCD Display
Waterproof to IPX6, reliably displays battery status, maximum speed and more. The display keeps you informed of your riding conditions.

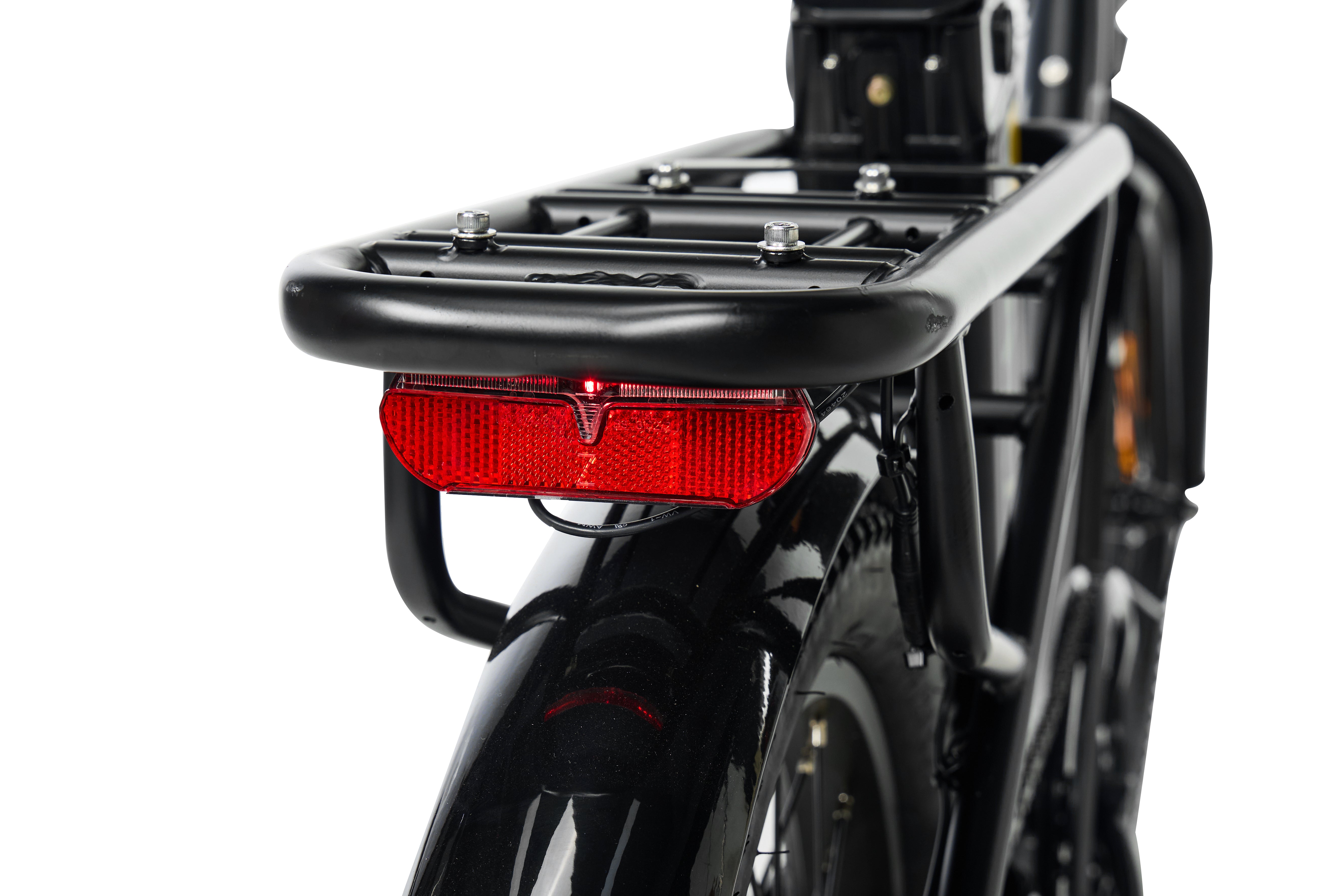

Integrated Rear Light
The Super V series features a rear light with wiring embedded in the frame – sleek, practical, and safe. Perfect for stylish rides.

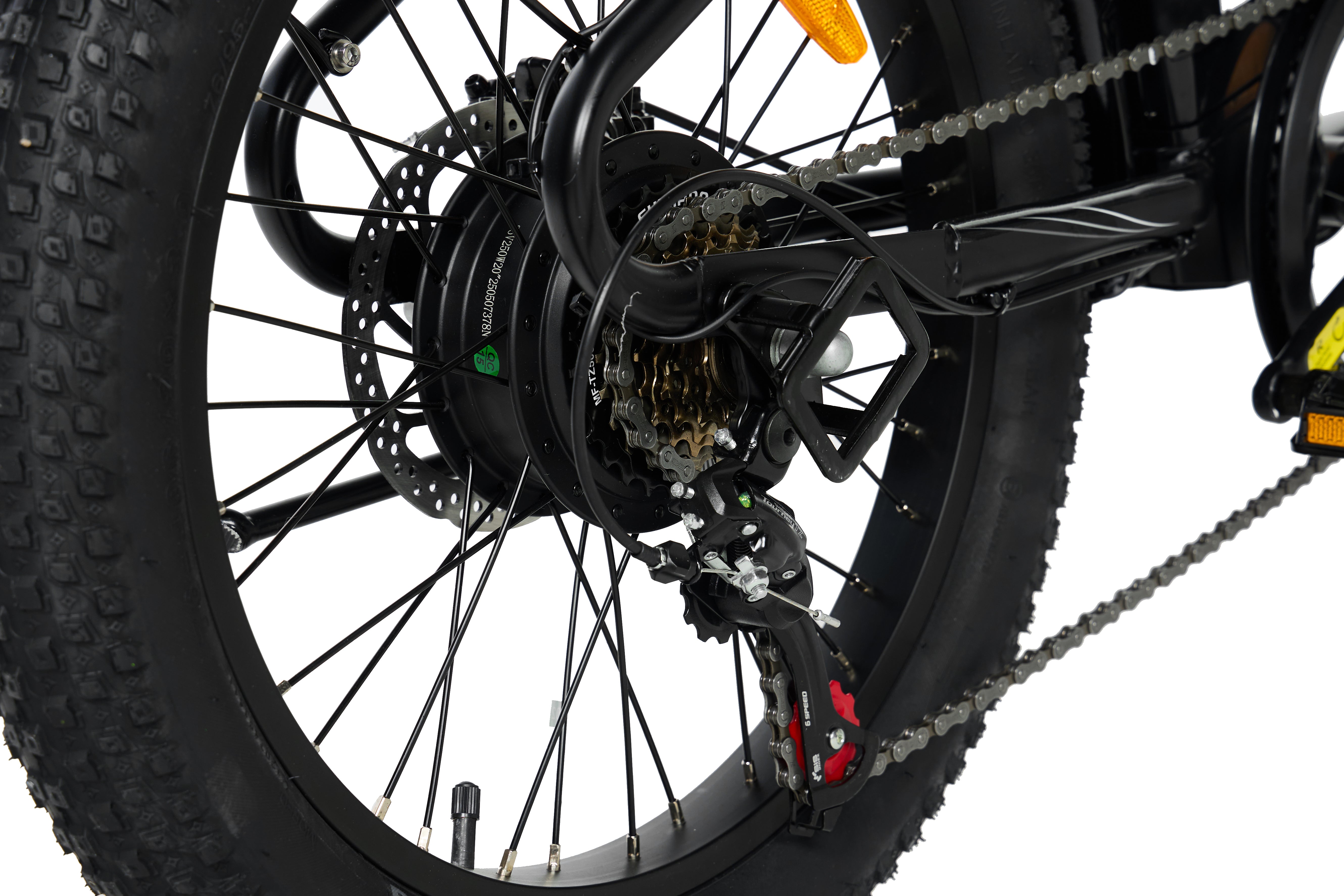

Gear rim
The Shimano® 7-speed transmission (14-28T) impresses with its powerful lightness and outstanding performance on all roads. The smooth gear changes ensure a more pleasant riding experience.
- Specifications
- Frame
- Motor Control
- Components
-
Pedal Assist Range
50+ km -
Electric-Only Range
40 km -
Top Speed
25 km/h -
Dimensions
143*30*74 (cm) -
Max Load Capacity
120 kg -
Ebike Net Weight
30 kg -
Torque
48 Nm -
Battery
Samsung 36V 10.4Ah IPX6 Waterproof, CE Certified -
Battery Charging Time
4 - 5 hours -
Battery Weight
5 kg
-
Frame Material
6061 Aluminum Alloy Frame. -
Front Suspension
Aluminum Suspension -
Front Suspension
Travel Total Length 375mm, Travel 40mm. -
Handlebar
Riser Handlebar, Grip Length 125mm, Total Length 63cm. -
Pedals
Folding, 9/16", With Reflectors. -
Chain
1/2"*3/32"*118l, 21-Speed Indexing. -
Crankset
170mm Crank Arms, 52t Chainring.
-
Display
3.0" LCD Display -
Pas Levels
0-5 Pas. -
Maximum Output
54.6V2A With Temperature Control Protection. -
Motor
350W Peak Rear Hub Brushless Motor. -
Sensors
Speed Sensor. -
Rear Derailleur
Shimano 14-28T. -
Charger
2A Smart Charger, CE Certified.
-
Rim
Aluminum Alloy 20"3.012g*36h. -
Spokes
45# 12g*174mm, Compliant With En15194 Standard -
Tire Brand
Chaoyang All-Terrain Tire. -
Tire Size
20"*3.0, 30psi. -
Inner Tube
20"*3.0", Valve Stem 32mm. -
Brake Levers
Aluminum Material (With Brake Priority Protection). -

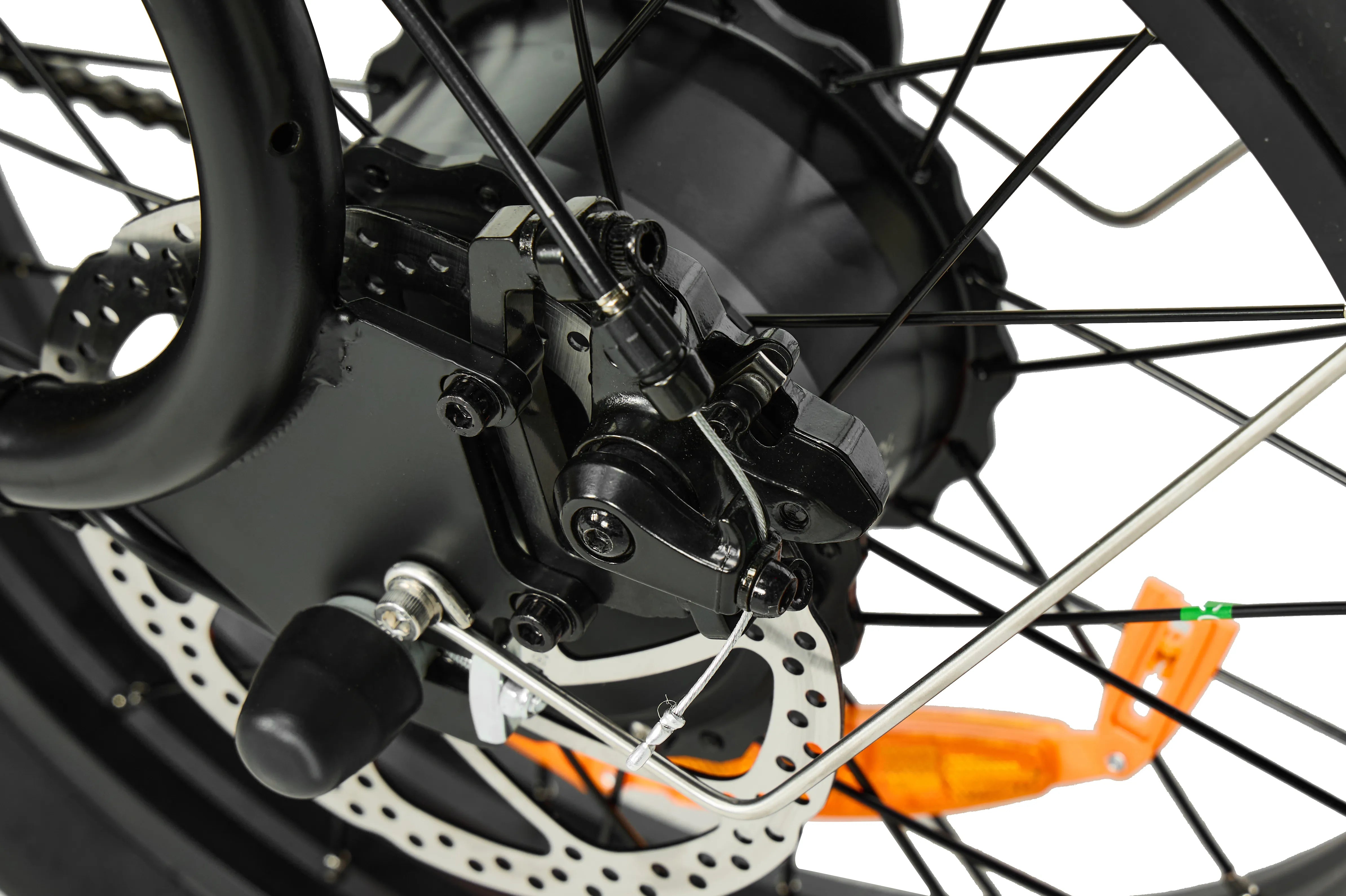

Brakes
Front And Rear Mechanical Disc Brakes. -
Brake Rotors
180mm -
Kickstand
Heavy-Duty Aluminum Kickstand.
-
Specifications
-
Pedal Assist Range50+ km
-
Electric-Only Range40 km
-
Top Speed25 km/h
-
Dimensions143*30*74 (cm)
-
Max Load Capacity120 kg
-
Ebike Net Weight30 kg
-
Torque48 Nm
-
BatterySamsung 36V 10.4Ah IPX6 Waterproof, CE Certified
-
Battery Charging Time4 - 5 hours
-
Battery Weight5 kg
-
-
Frame
-
Frame Material6061 Aluminum Alloy Frame.
-
Front SuspensionAluminum Suspension
-
Front SuspensionTravel Total Length 375mm, Travel 40mm.
-
HandlebarRiser Handlebar, Grip Length 125mm, Total Length 63cm.
-
PedalsFolding, 9/16", With Reflectors.
-
Chain1/2"*3/32"*118l, 21-Speed Indexing.
-
Crankset170mm Crank Arms, 52t Chainring.
-
-
Motor Control
-
Display3.0" LCD Display
-
Pas Levels0-5 Pas.
-
Maximum Output54.6V2A With Temperature Control Protection.
-
Motor350W Peak Rear Hub Brushless Motor.
-
SensorsSpeed Sensor.
-
Rear DerailleurShimano 14-28T.
-
Charger2A Smart Charger, CE Certified.
-
-
Components
-
RimAluminum Alloy 20"3.012g*36h.
-
Spokes45# 12g*174mm, Compliant With En15194 Standard
-
Tire BrandChaoyang All-Terrain Tire.
-
Tire Size20"*3.0, 30psi.
-
Inner Tube20"*3.0", Valve Stem 32mm.
-
Brake LeversAluminum Material (With Brake Priority Protection).
-
BrakesFront And Rear Mechanical Disc Brakes.
-
Brake Rotors180mm
-
KickstandHeavy-Duty Aluminum Kickstand.
-
- What's in the box?
-
Battery x1
-
User Manual x1
-
Pedals x2
-
Front Wheel x1
-
Seat x1
-
Toolkit x1
-
Keys x2
-
Charger x1
